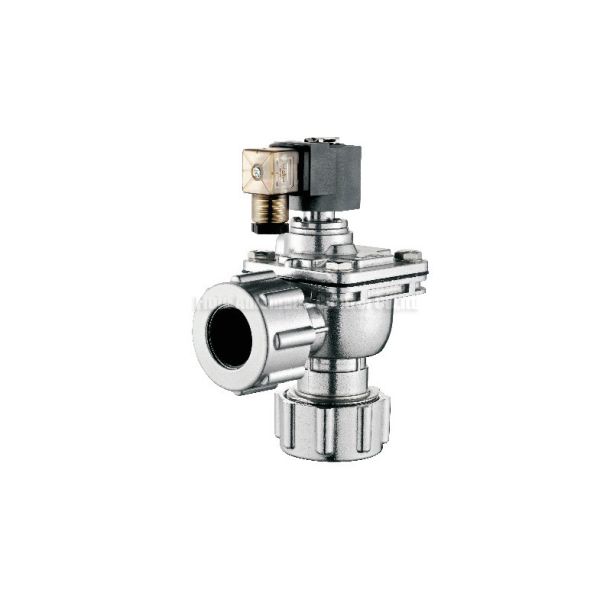

Air Control Goyen Right Angle Pulse Jet Valve 0.4-0.6Mpa DN20mm/40mm
CA/RCA-DD series Goyen type right angle with dresser nut port remote pilot solenoid/air control pulse jet valve working pressure 0.4~0.6Mpa, DN25mm, 40mm, dresser nut ports connection Ø35.5, Ø50.5 e.g CA-45DD
Quick Detail:
* CA/RCA-DD Series right angle with dresser nut ports solenoid pulse jet valve
* Valve surface embalmed,non-shedding coat
* DN20mm and DN40mm
* Dresser nut Port connection size Ø35.5, Ø50.5
* Inlet and outlet with dresser nut ports easy for installing,fast connecting
* Seal Material NBR standard
* Outstanding airproof performance
* With excellent flow liquidity
* High flow rate,heavy duty
* Fast respond,low noise,low consumption
* Stable design,long serive life
Applications:
CA/RCA right angle with dresser nut port series solenoid/Air control pulse jet valve used widely in Ventilation and dust removal purification of industrial bolier,Iron and steel industrial, metallurgy, foundry, chemical, building material,machinery,rubber industrial etc
Specifications:
| Working Pressure (Mpa) | Working Medium | Voltage | Current | Temperature Level | Relative Humidity of Air | Protection Class | Diaphragm life |
| 0.4~0.6 | Clean air | DC24V | 0.8A | –25~80℃ –25~150℃ –25~230℃ | ≤85% | IP65 | One million blows or 3years |
| AC110V | 0.46A |
| AC220V | 0.23A |
| Model | Orifice Size | Quantity Of Diaphragm | Inlet/Outlet Dresser nut Ports size |
| Metric Size/mm |
| CA/RCA-25DD | 25 | 1 | Ø35.5 |
| CA/RCA-45DD | 40 | 2 | Ø50.5 |
| NO | Name | Material instruction | NO | Name | Material instruction |
| 1 | Coil | Good quality wire | 8 | Big spring | 321 stainless steel |
| 2 | Pilot kits | 430FR stainless steel | 9 | Fastener | 302 stainless steel |
| 3 | Small cap | ADC aluminium | 10 | Diaphragm kits | Imported NBR |
| 4 | Middle cap | ADC aluminium | 11 | Valve body | ADC aluminium |
| 5 | Small spring | 321 stainless steel | 12 | Nut | ADC aluminium |
| 6 | Diaphragm kits | Imported NBR | 13 | Seal | 302 stainless steel |
| 7 | Up cap | ADC aluminium | 14 | Seal | Imported NBR |
Solenoid pulse jet valve,Dresser nut ports pulse jet valve, Diaphragm Dust collector
